Environmental

IRP Fire and Safety Limited is the regional agent for a wide range of environmental products that are designed to keep our ecosystem clean. We represent NPS Corp. (Absorbents), UltraTech International Inc. (Secondary Containment & Stormwater Management), The ARK Enterprises (Peat Moss Particulate) and Elastec (Oil Spill Response).

CATALOG/DATA SHEET

ELASTEC

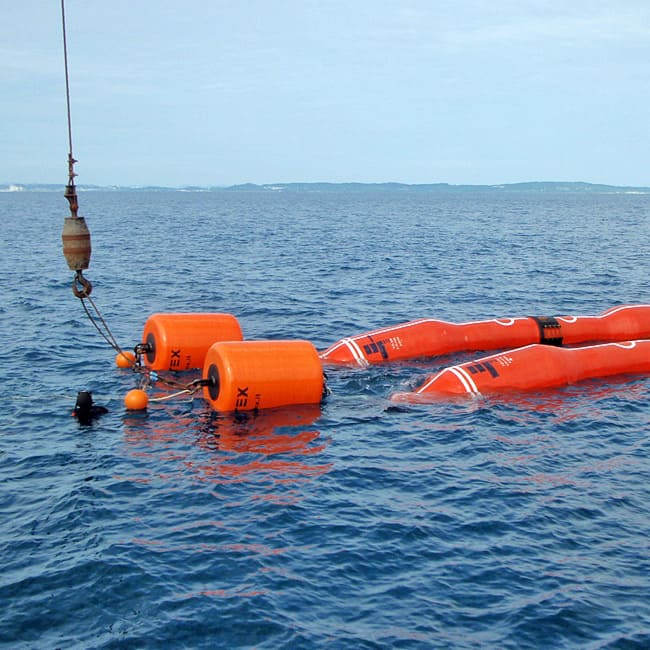

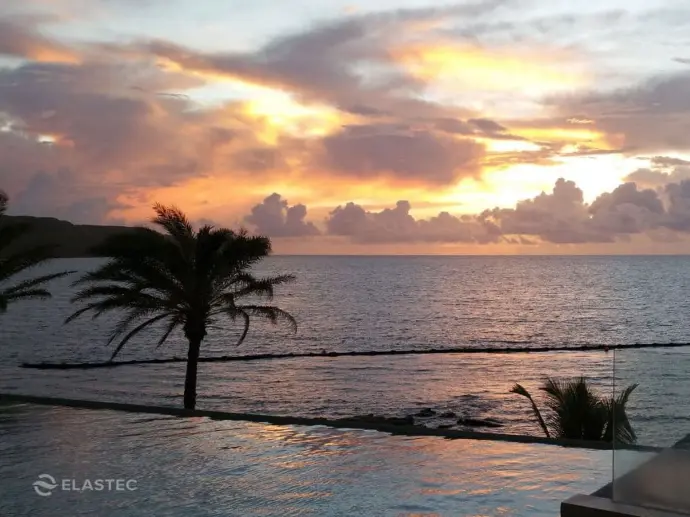

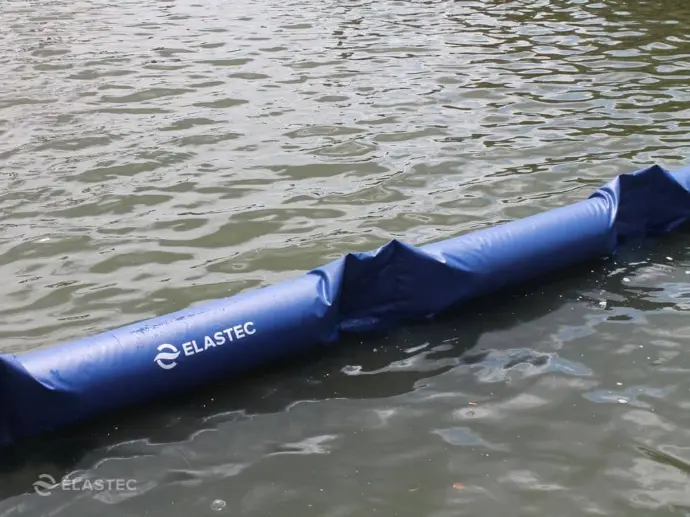

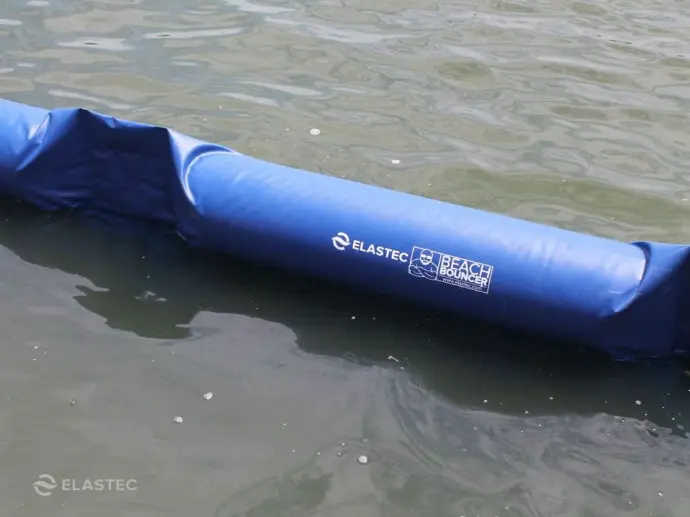

BEACH BOUNCER BOOM (Sargassum Seaweed Control)

Beach Bouncer is a seaweed control barrier that consists of a heavy-duty coated mesh fabric skirt supported by a flotation encased in vinyl coated fabric. It features a stainless-steel load carrying cable above & below the flotation and a heavy galvanized chain ballast at the bottom of the skirt. This boom can work for all sea vegetation growth and is the main sea guard against Sargassum Seaweed.

The Beach Bouncer Boom is a heavy-duty polyvinyl chloride (PVC) floating barrier with 3 ft. / 0.9 m mesh skirt hanging from a 12 in. / 0.3 m float. This boom is usually used in deflection mode to keep the Sargassum Seaweed and other types of floating debris off beaches and at sea so it can be carried away with the current.

CATALOG/DATA SHEET

ELASTEC

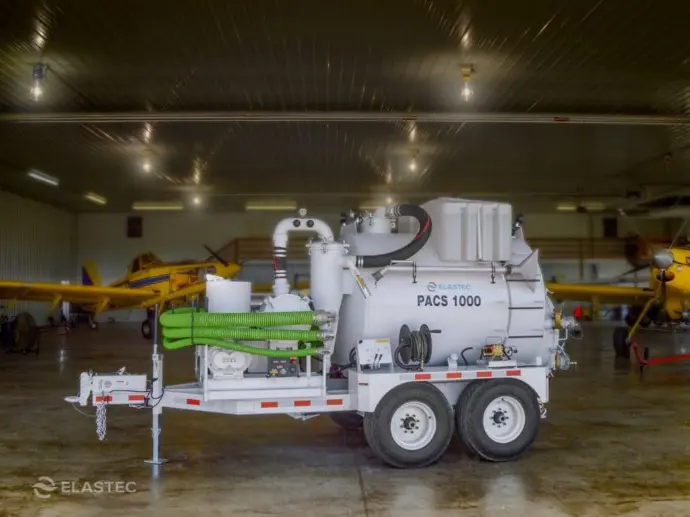

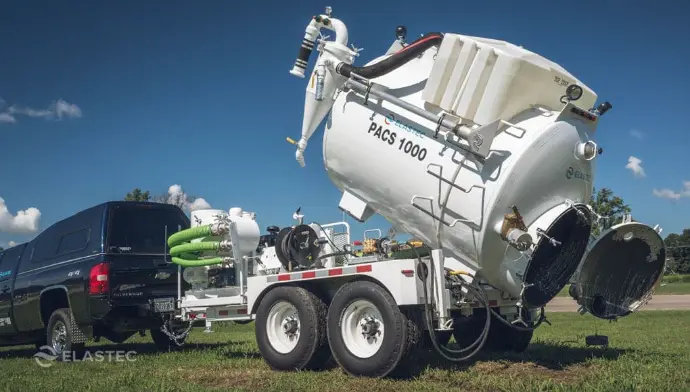

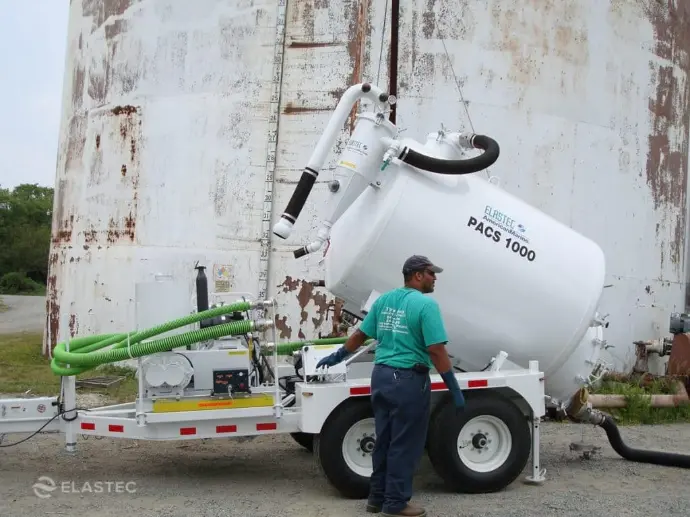

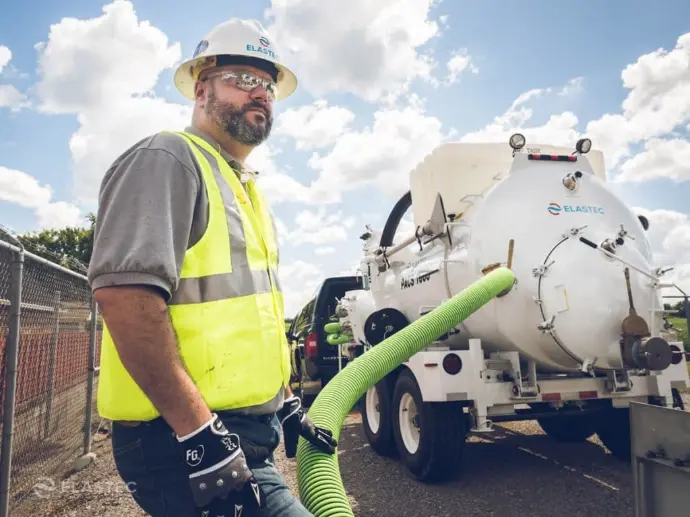

PACS1000 VACUUM TRAILER

PACS (Portable Air Conveyance System) is ideal for picking up viscous oil and debris on land or from water surfaces. It is also very effective for beach cleaning operations that require long suction hoses and large solids handling abilities. PACS 1000 is designed for removing liquids, solids, and sludge from land or water, it is suitable for use in remote areas and costs less than vacuum trucks.

• Designed for removing liquids, solids & sludge.
• Trailer mounted unit, DOT approved for highway towing.
  • Trailer lights
  • Reflectors
  • Safety chains & hooks
• Less costly, more portable than vacuum trucks.
• Easy operation (user friendly controls located in easy-access locations) & low maintenance.
• Choice of vacuum pumps or blowers. (230 to 770 cfm). Air or water cooled.
• Engine options up to 48 hp.

Common Areas of Usage

• Mines • Tank Cleaning (non-hazardous) • Road Spills (ATEX unit) • Power Stations • Loading bays • Hydro-excavation • Remediation • Oil Spill Response
• General Cleaning • Utility • Airports • Railroads • Animal Farms

CATALOG/DATA SHEET

ELASTEC

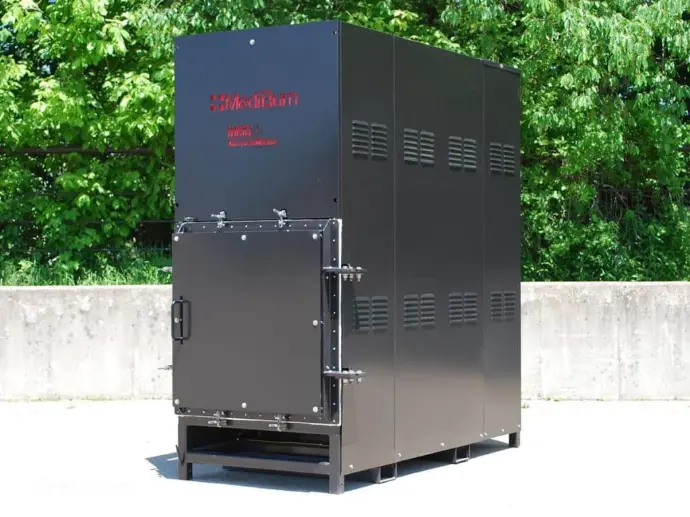

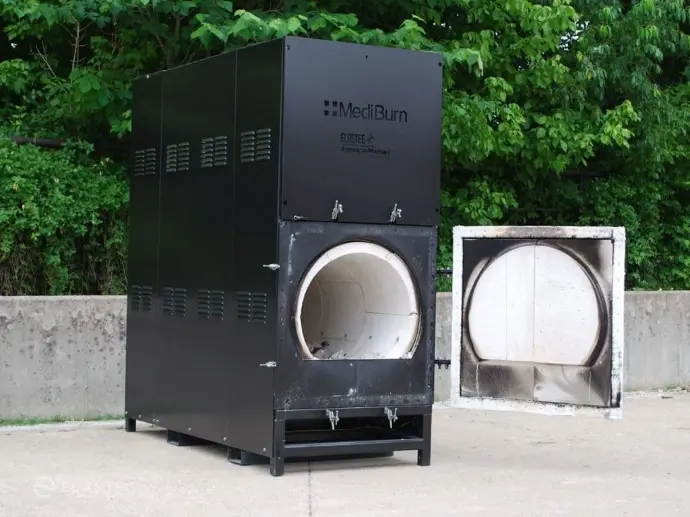

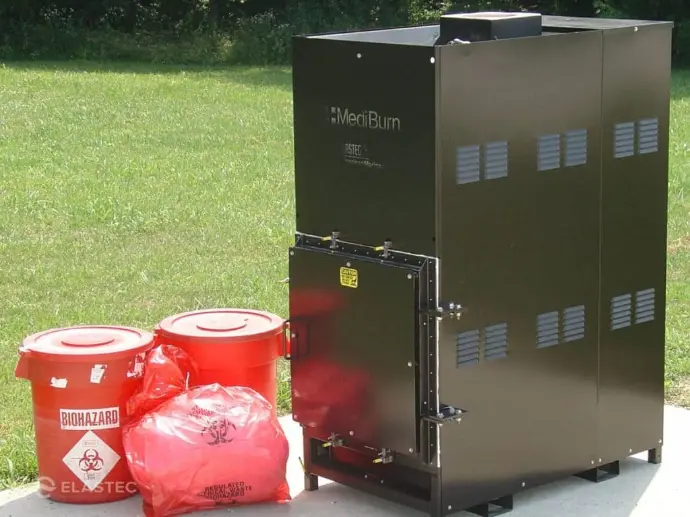

MEDIBURN INCINERATOR

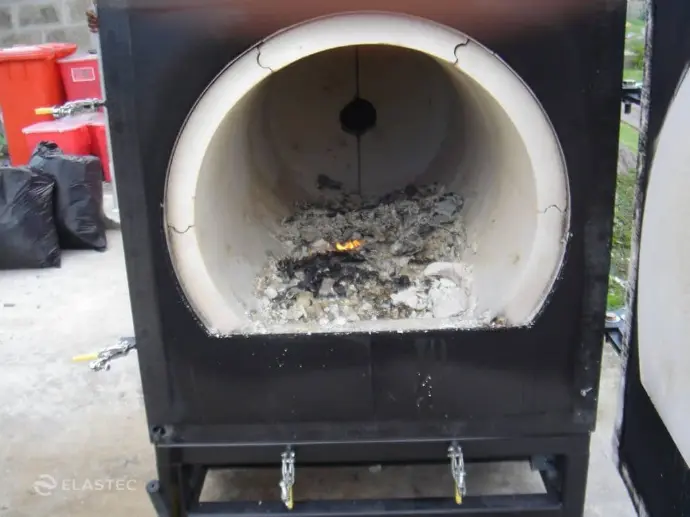

Mediburn is a batch load, direct fire, mobile incinerator for a variety of applications including medical waste. The unit is one of the lightest in its class , facilitating deployment for virus outbreaks and disaster relief operations. It does not use cast concrete, rather a layer of fire bricks, that can be easily replaced in the field as needed. Primarily running on diesel, the

Mediburn can also be fuelled by heating oil or JP8. It is available in two sizes depending on the volume of waste to be handled. The modulating under air

burners ensure consistent high temperatures needed to destroy infectious waste, whilst retaining the flue gas for sterilization. Simply load waste into the chamber, close the door and turn on the unit. Minimal training is required and MediBurn is ready to use upon delivery.

APPLICATION

Small Hospitals • Community Clinics • Poultry Farms • Dialysis Clinics • Blood Banks • Physicians’ Offices • Dental Offices • Centres for Disease Control

• Acute Psychiatric Facilities • Outpatient Surgical Facilities • Health Maintenance Organizations • Home Health Agencies • Hospice Agencies
• Animal Cremation • Disaster Relief Operations • Pharmacies • Police Departments •Laboratories • Military Bases • Veterinary Clinics • Airports

CATALOG/DATA SHEET

ULTRATECH

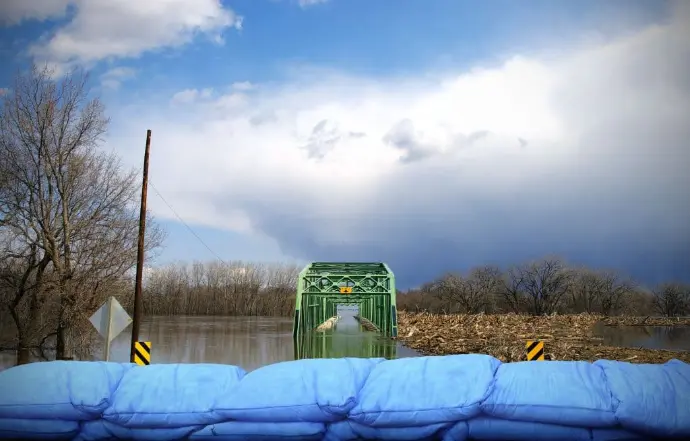

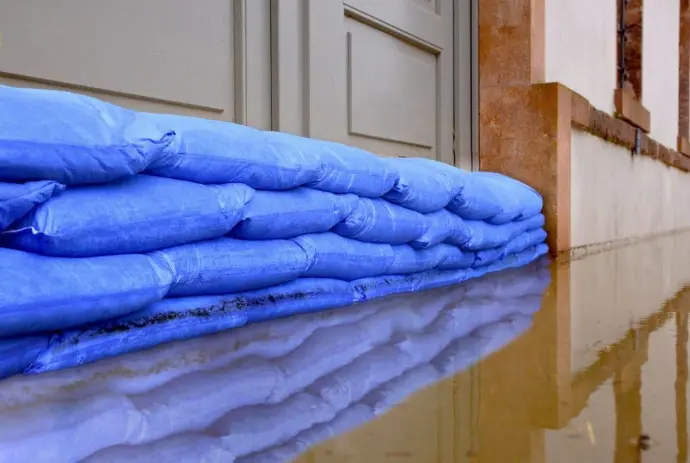

ULTRA-AQUA BAG

Sandless sandbags protect property against floods, leaks, and other liquid emergencies

For many years, the sandbag has been the predominant method of controlling floodwaters and preventing water damage.  But sandbags are labour intensive and require large amounts of aggregate—something that is not always easy to come by, especially in an emergency.

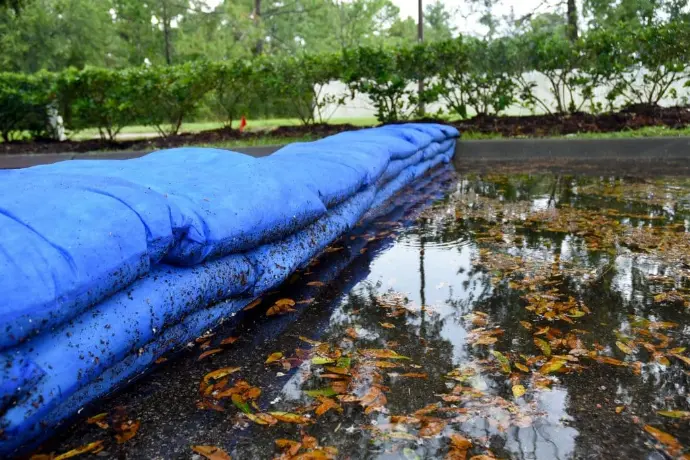

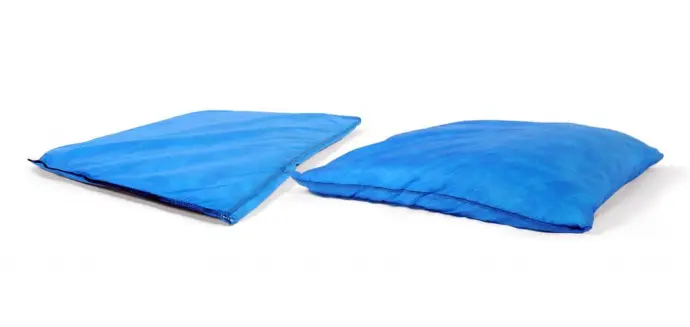

The Ultra-Aqua Bag is a revolutionary sandless sandbag that can be used to build an effective water barrier to protect property against floods, water heater leaks, broken pipes, overflowing toilets, and other liquid emergencies.

Key Features:

• Sturdy construction – Hydrophilic, non-woven fabric covers four layers of patented super-absorbent polymer.
• Quick acting—In minutes, these sandless sandbags absorb water to 90% capacity, preventing floods and leakage from damaging surrounding property.
• Easy to use and transport – pre-activated, Ultra-Aqua Bag sandless sandbags weigh less than a pound each and measure 17”x 22” when dry.
• Superior water barrier/flood barrier – at full absorption, Ultra-Aqua Bags provide between 30 to 40 pounds of flood stopping weight.
• Engineered consistency – designed and built to maintain a consistent shape throughout the Bag.  Other bags tend to slump to the bottom end when picked up, will not stack as well and are not as effective at sealing off water.

Sandless sandbags protect property against floods, leaks, and other liquid emergencies

For many years, the sandbag has been the predominant method of controlling floodwaters and preventing water damage.  But sandbags are labour intensive and require large amounts of aggregate—something that is not always easy to come by, especially in an emergency.

The Ultra-Aqua Bag is a revolutionary sandless sandbag that can be used to build an effective water barrier to protect property against floods, water heater leaks, broken pipes, overflowing toilets, and other liquid emergencies.

CATALOG/DATA SHEET

IRP can offer a range of remote-control monitors that can suit the specific requirements of our clients.

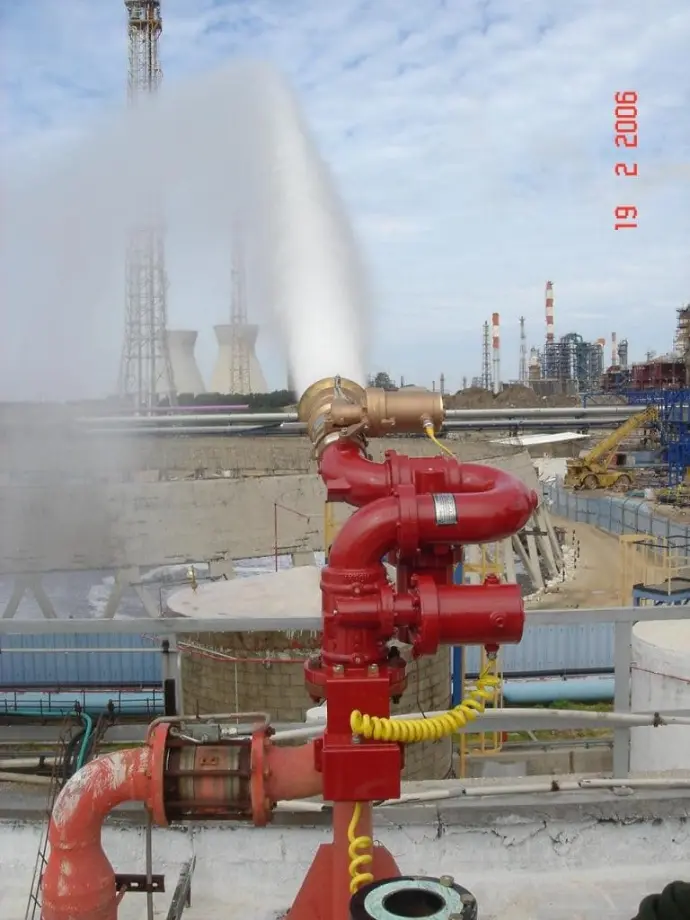

Fire Protection – Plant and Jetty operations

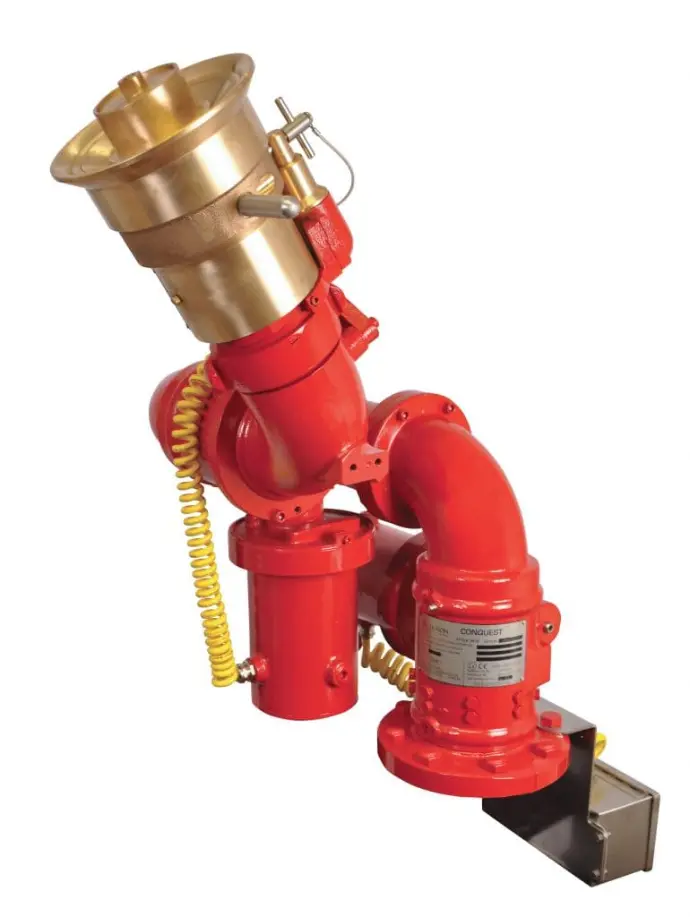

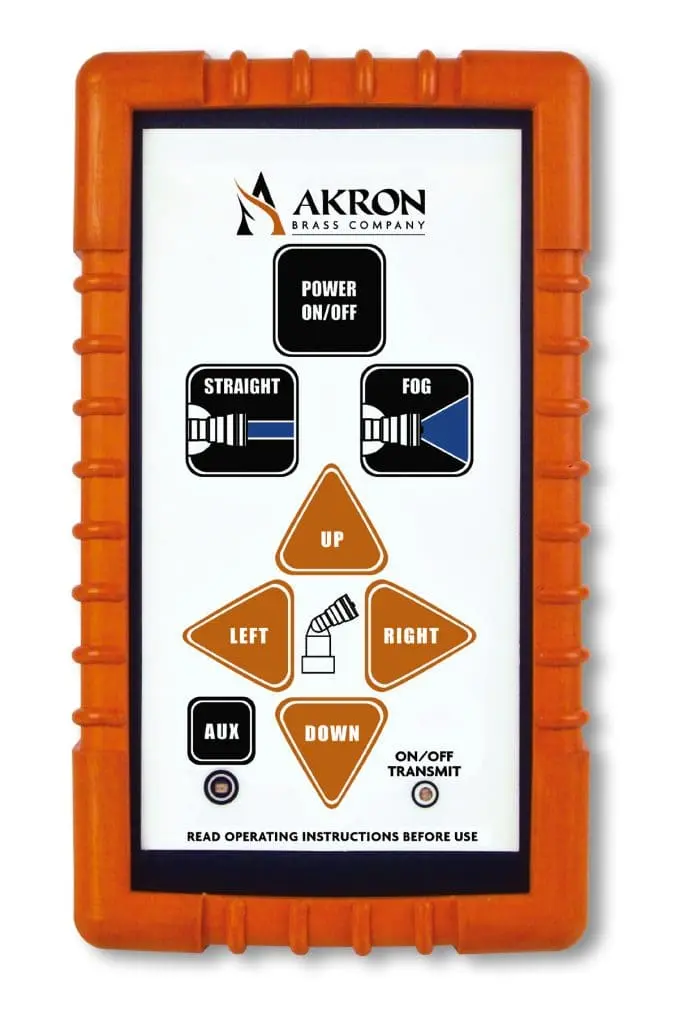

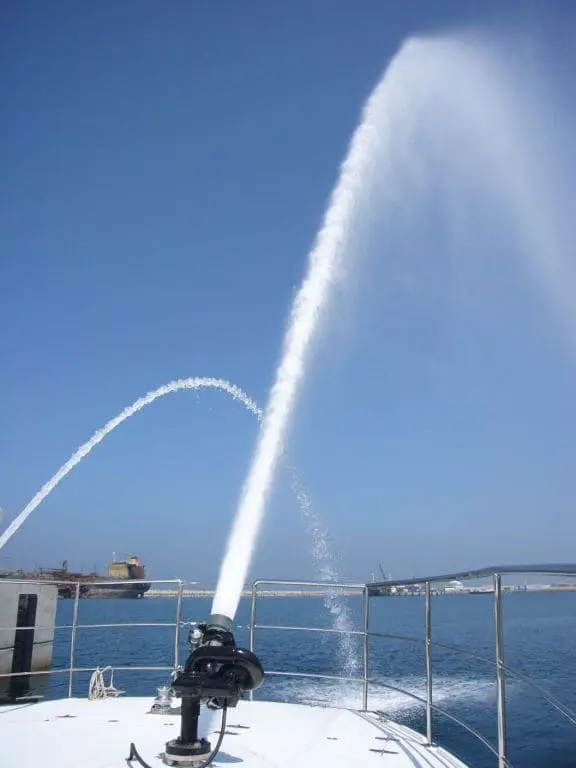

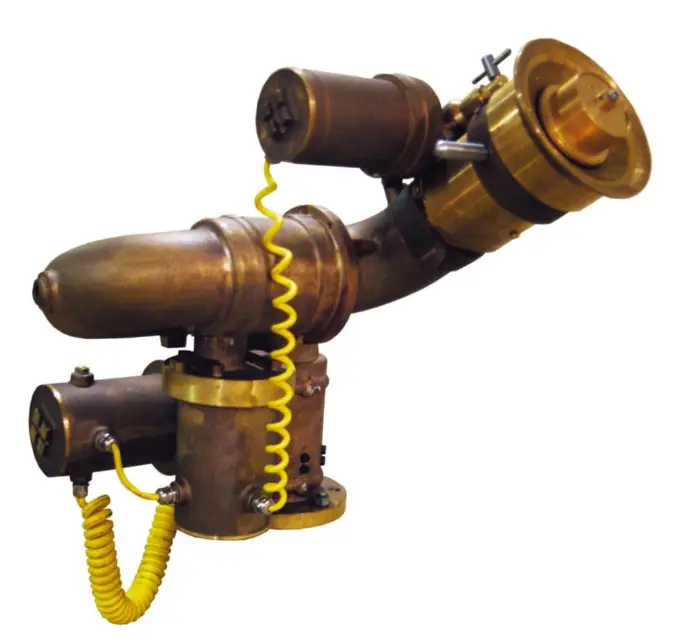

AKRON Conquest Electric Brass Remote-Control 2000 GPM Monitor P/N 3678 with various Nozzle options depending on the GPM (LPM) requirements, Water only or Water & Foam.

CATALOG/DATA SHEET

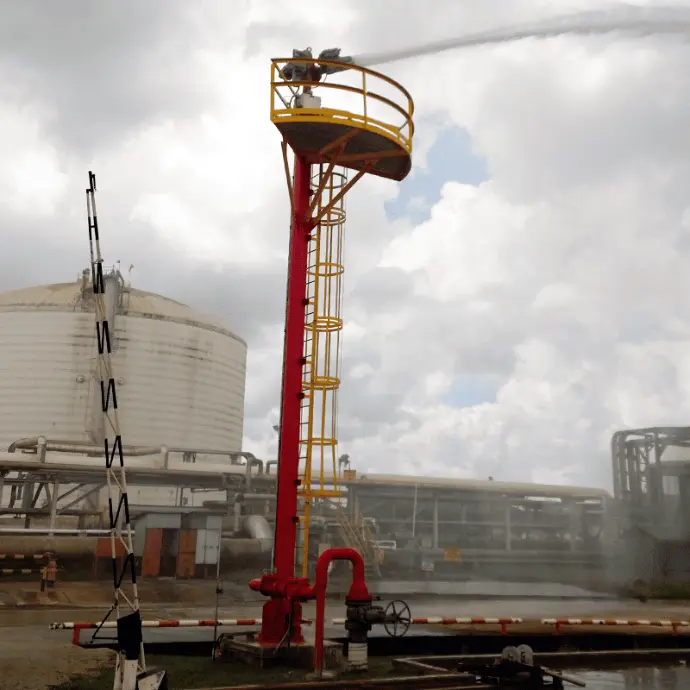

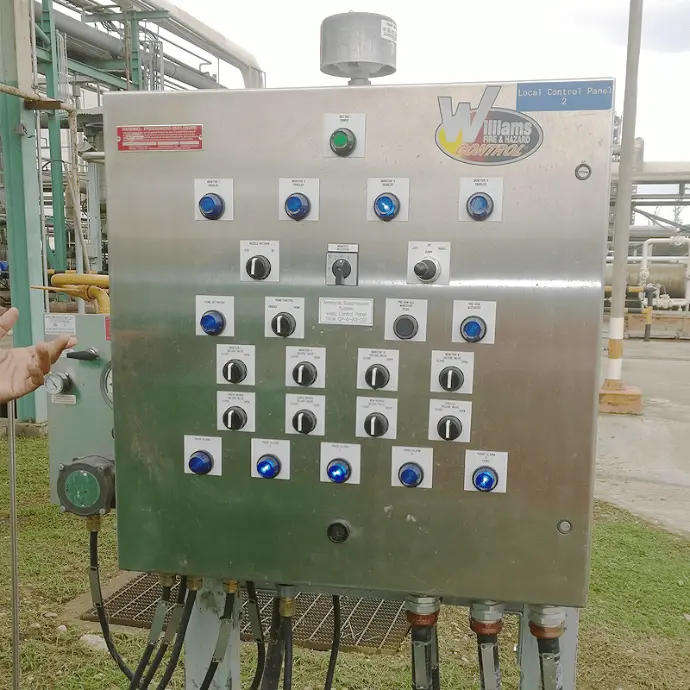

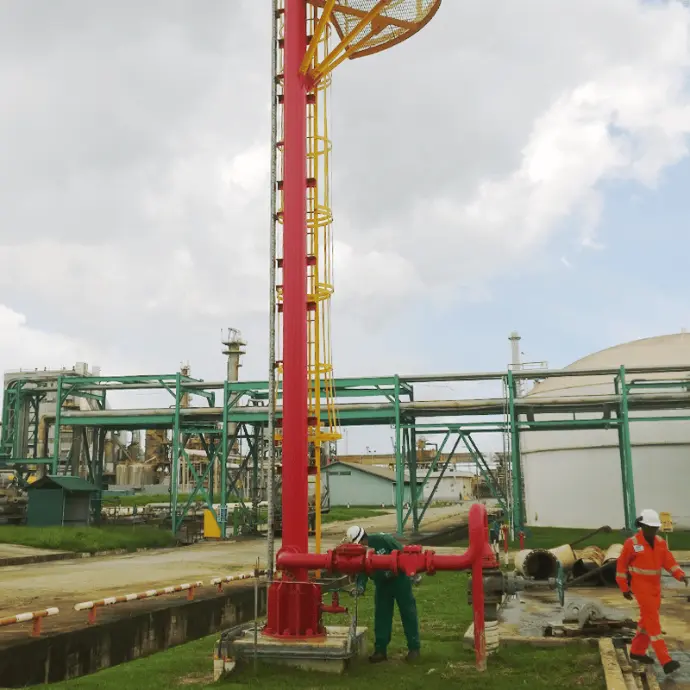

WILLIAMS FIRE & HAZARD CONTROL High Volume Electric Actuated Remote-Control 4000 and 6000 GPM Monitors with various Ranger Nozzle options 1,500 – 4,000 GPM (5,678 – 15,142 Lpm) and 2,500 – 6,000 GPM (9,464 – 22,712 Lpm), respectively, with maximum working pressure is 200 psi (13.8 bars).

CATALOG/DATA SHEET

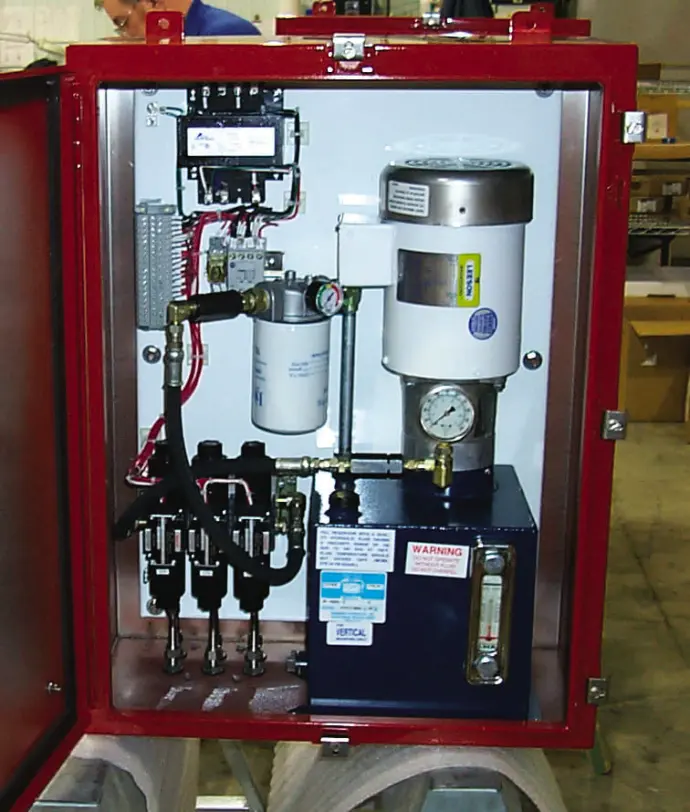

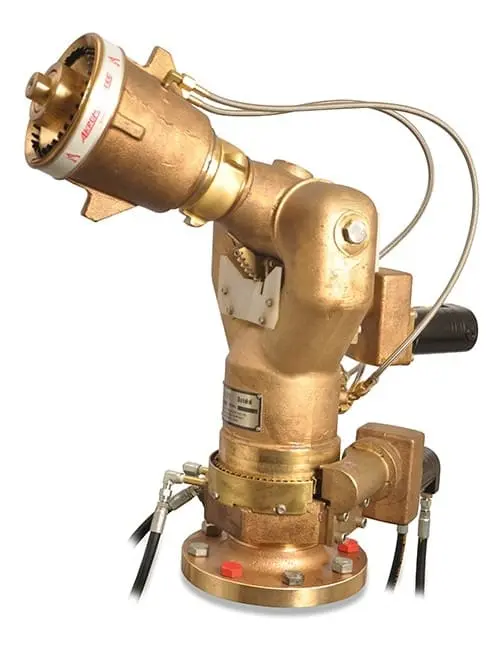

AKRON Genesis Hydraulic  Brass Remote-Control 1000 GPM Monitor P/N 3678 with various Nozzle options depending on the GPM (LPM) requirements, Water only or Water & Foam.

CATALOG/DATA SHEET

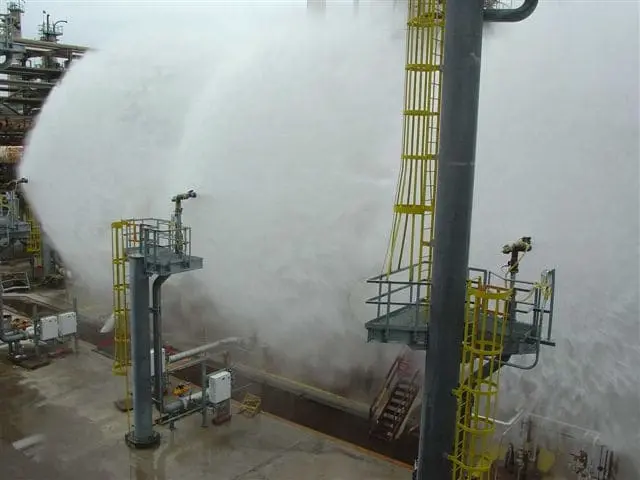

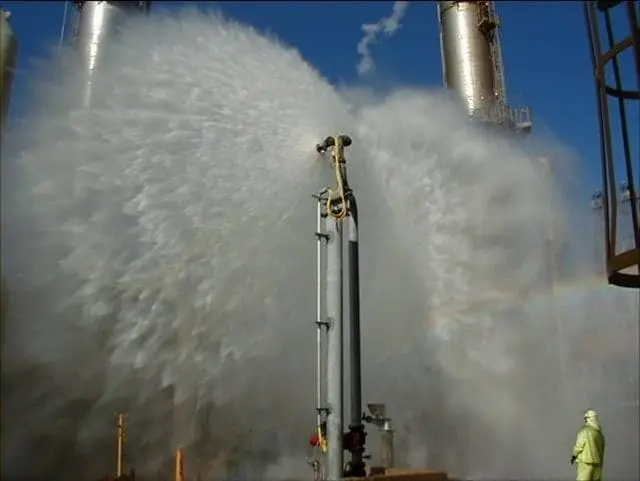

Mitigation (Knock Down) Systems – For Toxic Gases and LNG

AKRON Conquest Electric Brass Remote-Control 2000 GPM Monitor P/N 3678 with various Nozzle options depending on the GPM (LPM) requirements.

CATALOG/DATA SHEET

Fire Protection – Mobile Solutions

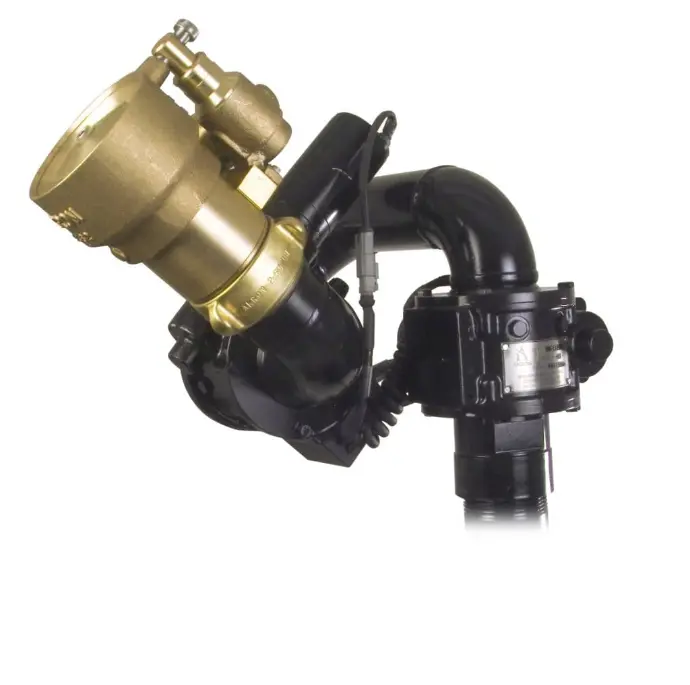

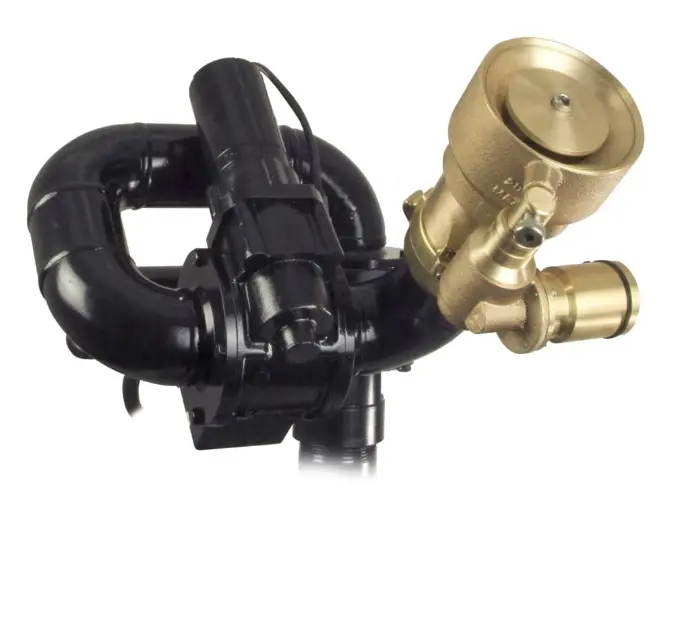

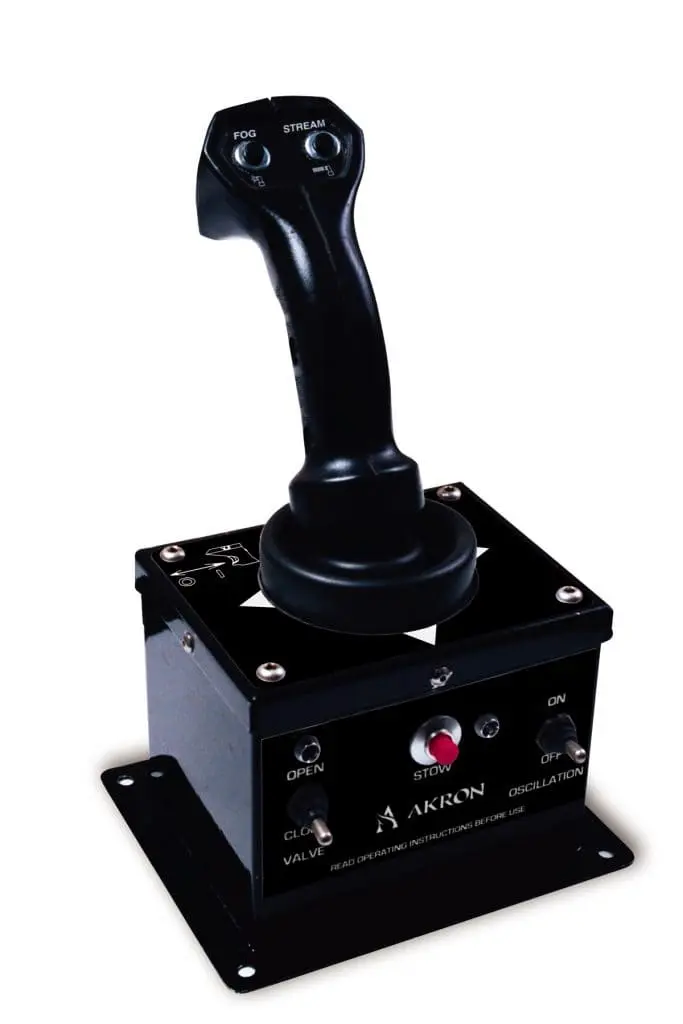

AKRON Severe-Duty Stainless Steel monitor and logic box 750 GPM rated P/N 3491 with various Nozzle options depending on the GPM (LPM) requirements. Designed to meet water and or foam needs. Available in Electric 12- or 24-Volt or Hydraulic configurations.

CATALOG/DATA SHEET

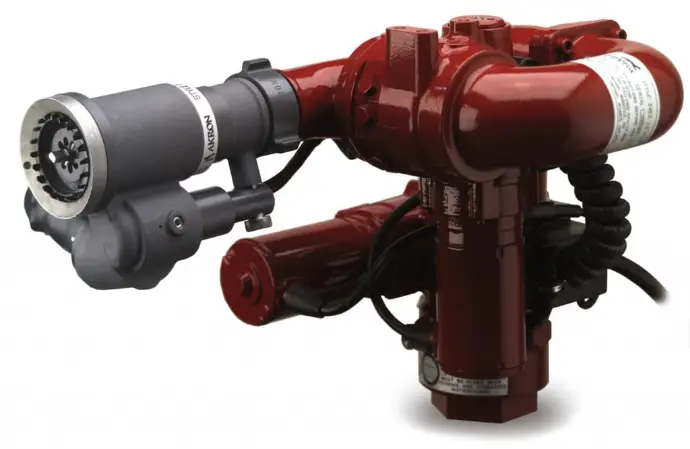

AKRON FireFox Electric Truck Mounted Monitor – 12V – Monitor, Logic Box, Low Flow Nozzle with flows upto 500 GPM. Designed to meet water, foam, CAFS and dry chemical needs.

CATALOG/DATA SHEET

FALL PROTECTION

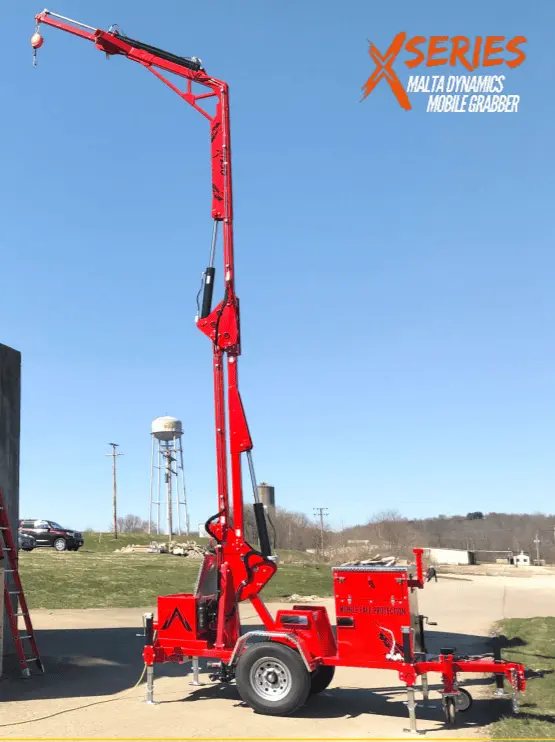

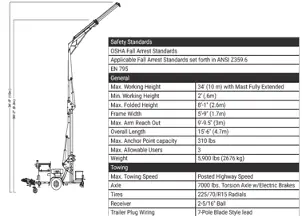

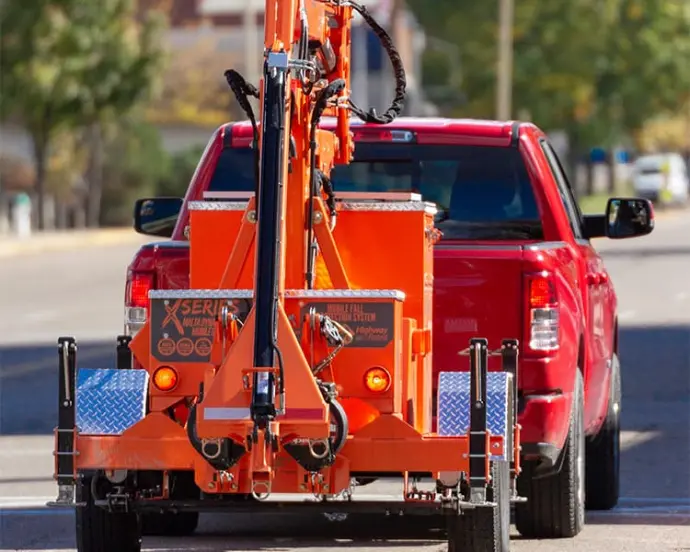

Mobile Grabber

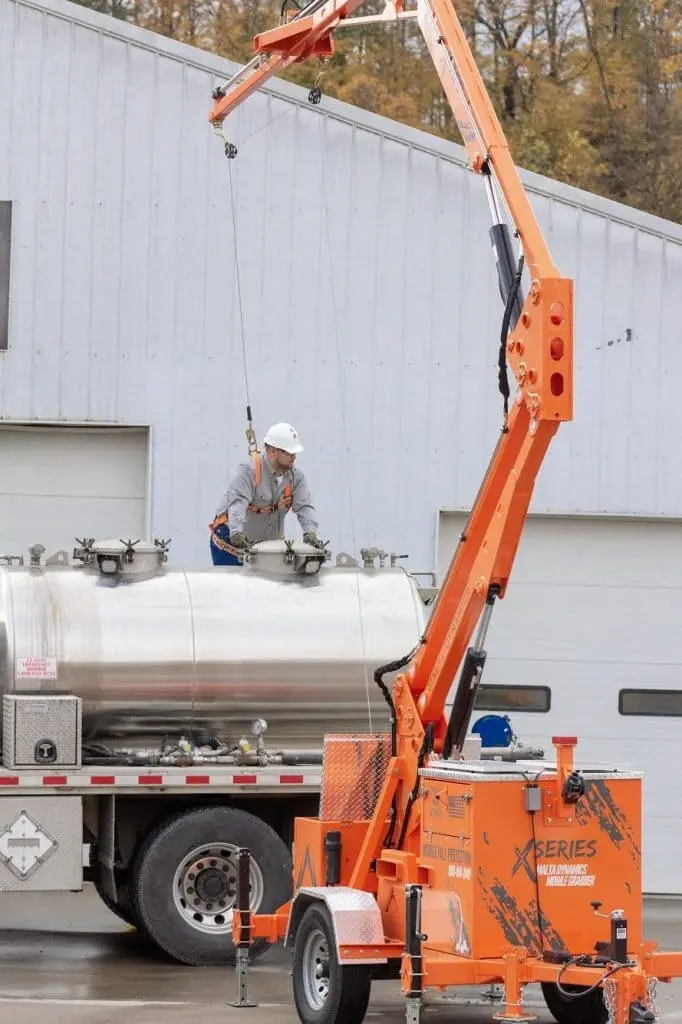

IRP Fire and Safety’s Malta Dynamics Mobile Grabber is available to rent or purchase. The unit suits multiple industries where working at heights or confined space entry is required. Unit can be rented short term or long term depending on the job scope. It brings safety to workers at heights with constant connection to an energy absorbing SRL and together with a full body harness forms a complete fall protection solution. The Grabber is equipped with a confined space retrieval and rescue kit for applications where a rescue plan must be in place. The Grabber offers a safe, efficient, and sustainable solution to all workers at heights or confined spaced entrants in all industries across Trinidad.

Features Include

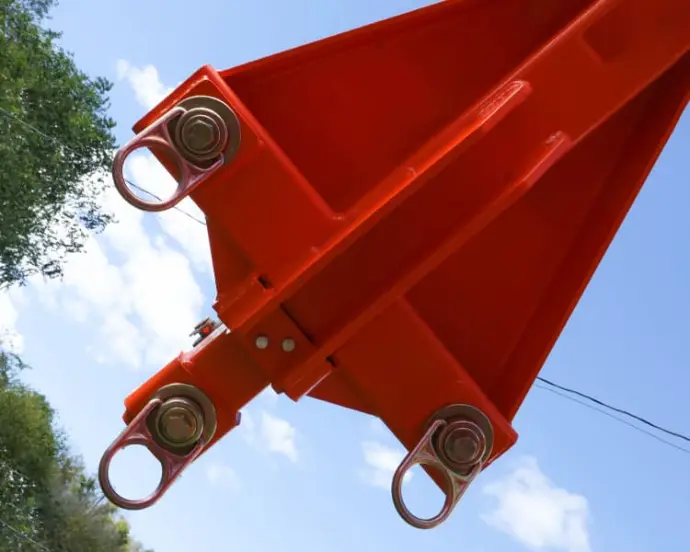

• 3 Anchor Points –  Designed for 3 persons to connect at one time.
• Mobile Grabber Go! – Wireless and independent mobility, allowing the Grabber to be positioned without the need for a vehicle.
• Grabber Grounding Lug – Offers two standardized studs for sites requiring electrical grounding.
• X Series Confined Space Unit – Confined Space Rescue/Retrieval kit. OSHA required rescue/retrieval options for confined spaces. Each Razorback Rescue/Retrieval unit not only provides fall protection but also allows an attendant to rescue a worker in need by raising or lowering (bi-directional winching capabilities) them to a safe level.
• X Series Emergency Pump – In the instance where the raised hydraulic boom fails, the system will stay erected due to its fail-safe feature. Once persons are lowered and disconnected, the emergency pump option allows you to manually bring the boom down for transport.
• Marine grade paint quality and electrical ports

CATALOG/DATA SHEET

Fire Protection

Foam Systems

Foam systems are used in many applications to suppress fires from combustible and flammable liquids. These include Tank Farm Facilities, Fuel Transfer Pumps, Hydrocarbon spill containment, Lube Oil Packages, etc. These systems are widely used in Tank Farms where hydrocarbons such as crude, diesel, gasoline, fuel oil and methanol are stored. Foam systems create a finished foam solution which breaks the hydrocarbon surface tension, resulting in blanketing the hydrocarbon liquid, thus suppressing a fire. Finished foam is a solution of foam concentrate and water which is aspirated as it is discharged from an approved discharging device. These foam systems are designed and comply with the NFPA 11 and NFPA 16 which typically includes:

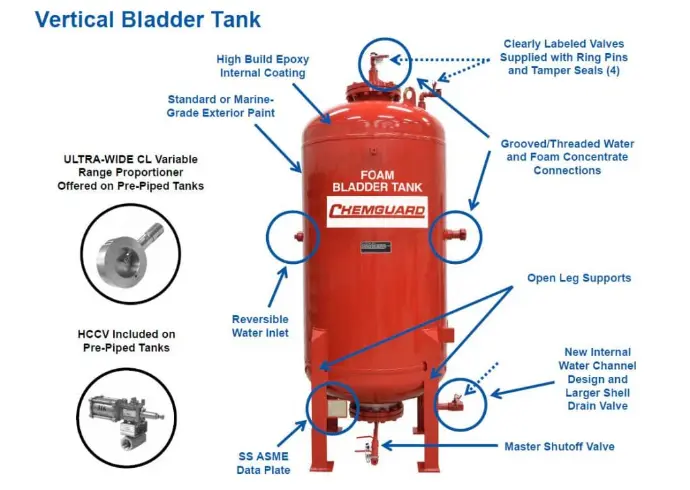

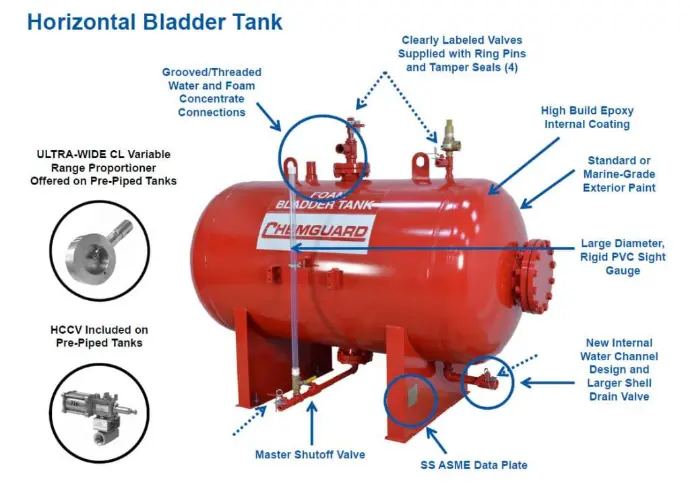

1. Bladder tank is a pressure-rated tank with an internal elastomeric bladder for foam concentrate storage. Upon system actuation, the incoming water pressure inside the tank squeezes the outside of the bladder causing the foam concentrate to be discharged out of the tank to a proportioning device. The Chemguard bladder tanks can be configured as horizontal, which can hold up to a storage capacity of 3000 gallons of foam concentrate, or vertical, which holds up to 2000 gallons. All Chemguard bladder tanks are UL Listed and FM Approved for use with various Chemguard proportioners and foam concentrates.

CATALOG/DATA SHEET

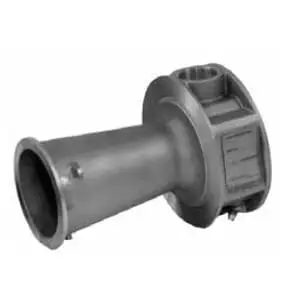

2. The Proportioning device is a component that accurately and dependably proportion foam and water in a variety of applications to the proportion design mixture percentages. There are many different models of proportioners, and the best suited model will be selected based on the Listing, system pressure, type of foam used and the system flow demand.

CATALOG/DATA SHEET

Discharge device, which can be a foam chamber/pourer or a spray nozzle that releases finished foam. Finished foam is a combination of foam concentrate, water and air that have mixed in the proper proportions. For Fixed Cone Roof Tanks, Foam Chambers are widely used as the approved discharging device.

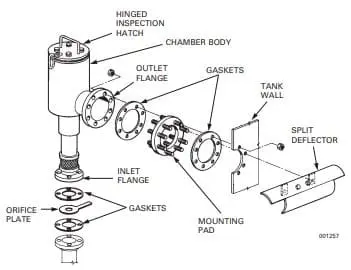

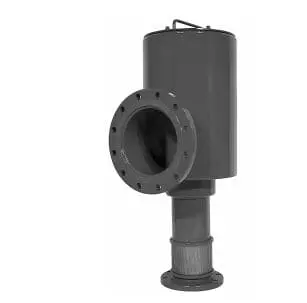

The Chemguard Foam Chamber Model CGFC consists of a foam expansion chamber and an integral foam maker with a stainless-steel screened air inlet. Each chamber includes an orifice plate, two inlet gaskets, vapor seal assembly, cover gasket, and an outlet gasket. The required deflector (split or shallow) and optional mounting pad assembly are sold separately.

CATALOG/DATA SHEET

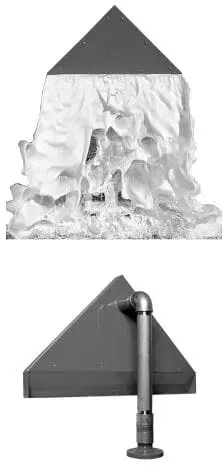

For Tanks which have a floating roof with annular seal area, the Chemguard CGFLR Model Rim Seal Foam Pourer is used as the approved discharging device or when protection, a Dike Containment, Foam Makers (sometimes referred to as pourers) are used as the approved discharging device for the application. The rim seal foam pourer is designed to discharge fully aspirated foam directly to the annular seal area of the open top floating roof storage tanks for fire or vapor suppression. Fully aspirated foam provides the most effective performance for all types of foam concentrates.

CATALOG/DATA SHEET

The Chemguard CGFLR and CGFM Foam Makers are used for Floating Roof and Dike Containment Applications. The CHEMGUARD floating roof foam maker is constructed of stainless-steel components for corrosion-resistance.

A screened air inlet, conforming to the cylindrical body, allows uniform air distribution into the foam solution stream to generate expanded foam. This design also helps prevent damage and inhibits the entrance of foreign materials.

CHEMGUARD Floating Roof Foam Makers (CGFLR) are air-aspirating foam discharge devices that are designed to protect floating roof, flammable liquid storage tanks. Specifically, the protected storage tanks must be of open-top construction with either double-deck or pontoon-type floating roofs. This type of construction eliminates the need for a vapor seal, allowing the use of foam makers rather than foam chambers. Additional applications include protection of diked flammable liquid storage and spill areas.

CATALOG/DATA SHEET

Chemguard CGFLR and CGFM Foam Makers

Spray Nozzle Discharging devices discharge the water-foam solution and allow it to become aspirated to achieve a good quality finished foam. These devices are used in applications such as the protection of fuel and crude oil transfer pumps, generator skids, lube oil packages, etc.

CATALOG/DATA SHEET

FIRE PUMPS

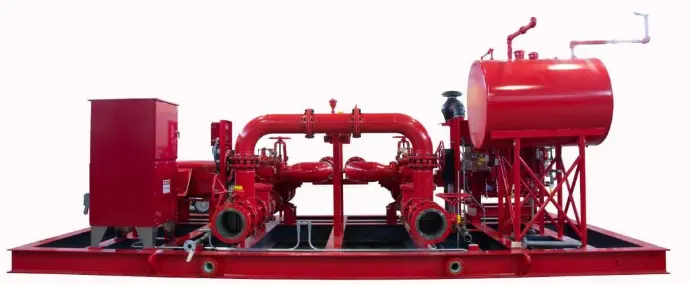

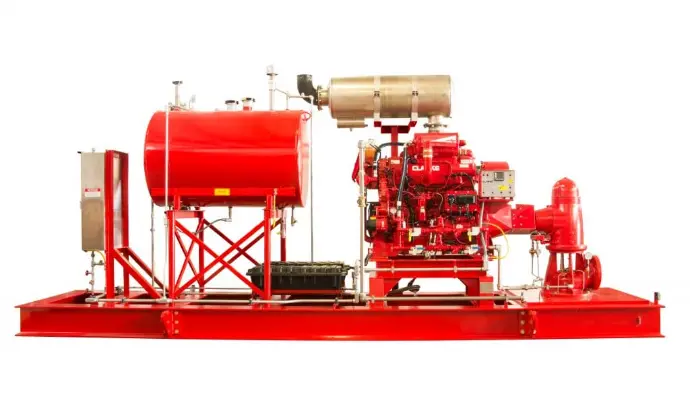

FIREWATER PUMP PACKAGES

A firewater pump (FWP) is a part of a fire protection system is which they is a need to create and move water from a stored. The water source can be from a city main, reservoir, water storage tank or pond. The firewater pump will create the necessary pressure and flow required by the design demand of the fire protection system. Firewater Pumps are tested and Listed or Approved by UL or FM Global. The firewater water pump packages are built and tested in accordance to NFPA 20 – Standard for the Installation of Stationary Fire Pumps for Fire Protection.

NFPA 20, Edition 2019, Chapter 3, Section 3.2.3 defines “Listed” as – “Equipment, materials or services included in a list published by an organization that is acceptable to the authority having jurisdiction and concerned with evaluation of products or services, that maintains periodic inspection of production of listed equipment or materials or periodic evaluation of services, and whose listing states that either the equipment, material or service meets appropriate designated standards or has been tested and found suitable for a specific purpose.”

Fire pumps are different from potable pumps as, they are rigorously tested by both U.L. and F.M. for reliability and long life through analysis of their design and construction. Casing integrity, for example, must be suitable to withstand a hydrostatic test of three times the maximum operating pressure without bursting! Engineering calculations for bearing life, bolt stress, shaft deflection, and shear stress must also be submitted to U.L. and F.M. and must fall within conservative limits to ensure utmost reliability.

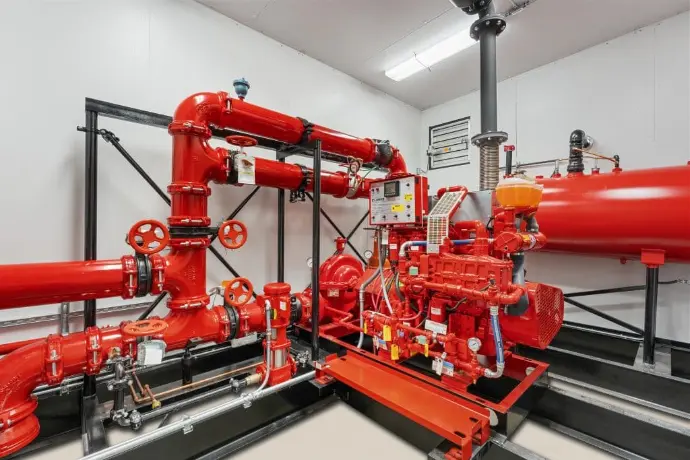

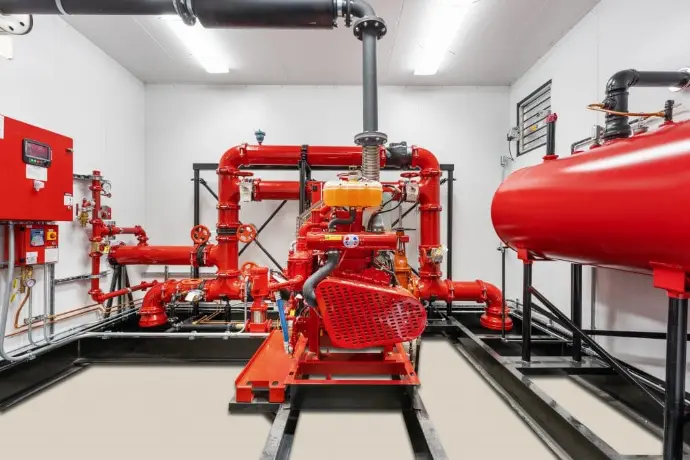

A NFPA Firewater Pump Package includes not only the pump, but the pump controller, pump drive (such as a diesel engine or electrical motor), suction and discharge manifolds, pump flow test manifold, etc. The typical configurations for firewater pumps are Horizontal Split Case (HSC) and Vertical Turbine Pump (VTP). Horizontal Split Case pumps are typically used when the suction side of the pump will receive a positive water pressure such as coming from an aboveground stored water tank or the city mains.  VTPs are used when the suction side has no incoming positive pressure thus the pump must create the lift of water. VTPs are typically used on offshore Oil & Gas Facilities as well as for applications where the water source is underground.

CATALOG/DATA SHEET

EMERGENCY RESPONSE PUMP PACKAGES

In the event of an Emergency where the facility's firewater pump (FWP) has failed or is insufficient to provide enough water to extinguish the Fire, IRP offers a range of Mobile Fire Water High Volume Pumps. In conjunction with our suppliers, we can calculate the size of the pump based upon your requirements and the distance away from the water source. Many times it is not just the pump capacity that is important, but the discharge hoses and monitor delivering the water, and those correct sizes can be offered to ensure the correct amount of water and/or foam onto the fire.

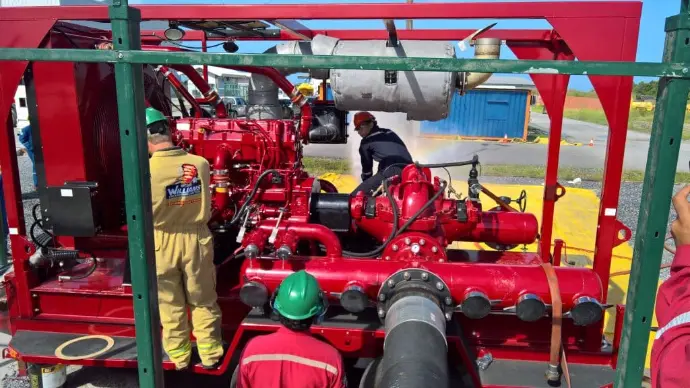

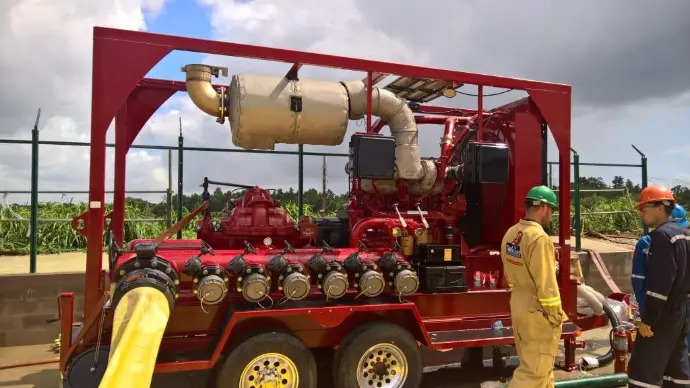

WILLIAMS FIRE DPAT PUMPS – The DependaPower Firewater Pumps are EPA Tier 3 or Tier 4 diesel-driven horizontal split case (or overhung axial split case for the 1500 model) centrifugal pumping systems designed to pump large volumes of water, 1500 to 6000 GPM, in emergency response operations. They are workhorse pumps capable of drafting water as well as boosting water pressure.

CATALOG/DATA SHEET

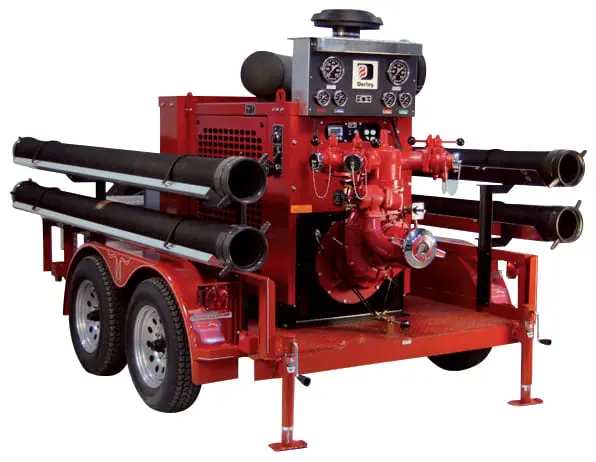

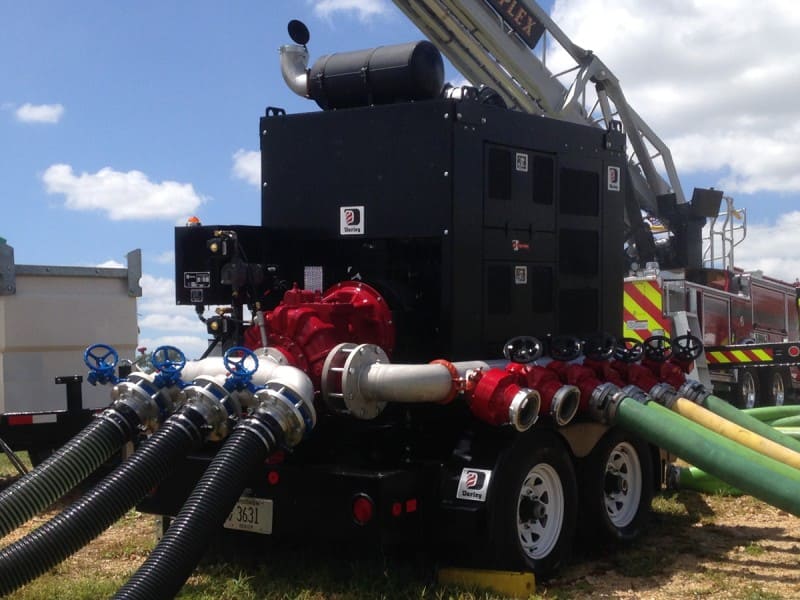

DARLEY PUMPS – Darley skid and trailer-mounted pumps offer versatile pumping protection ranging from a basic pump end through a fully engineered turnkey system. A wide variety of pump and engine combinations are available. Though all units come standard with an engine control panel with throttle making the unit operable, Darley can provide units with custom pump control panels, including traditional master gauges and relief valve or with Darley ergonomic AutoControl™ Governor.

CATALOG/DATA SHEET

TALCO FIRE SYSTEMS has been building premium quality fire pump systems for over 30 years. Specializing in both residential and commercial packaged fire pump systems, we design & custom build packaged units to fit any application. Our packaged systems will save you time, money, and headaches. We pull it all together, you drop it in place. Whether you need a residential fire pump and tank for your home or a 5000 GPM diesel driven fire system for a multi-warehouse complex – Talco has you covered.

CATALOG/DATA SHEET

IRP is the Agent & Distributor for Emergency ONE (UK) high-quality, state of the art trucks designed specifically for the Caribbean markets and industries. We take pride in configuring the trucks to your requirements. The E1EV is a full “Battery Electric Vehicle (BEV)”.

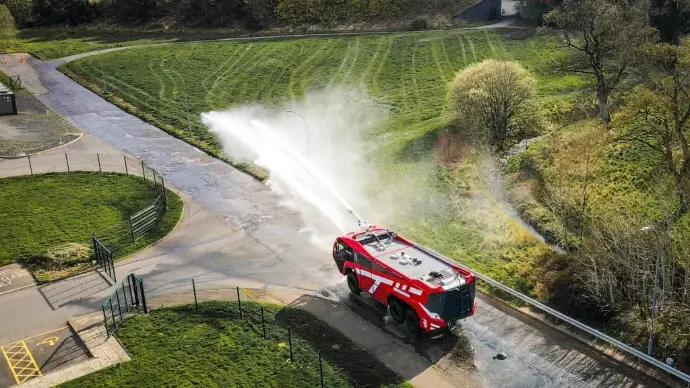

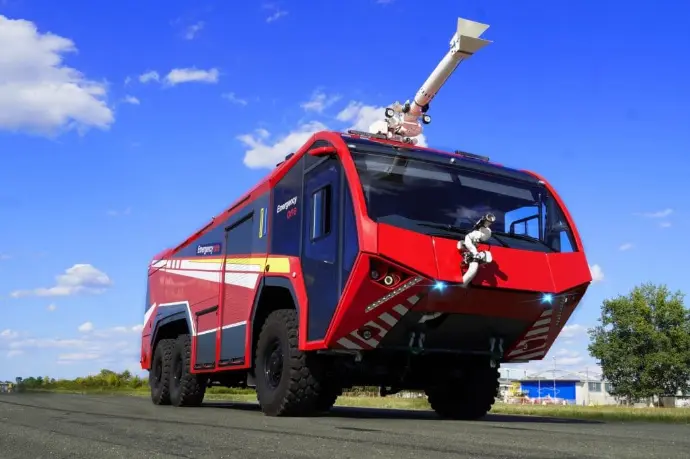

Airport ARFF Trucks

CATALOG/DATA SHEET

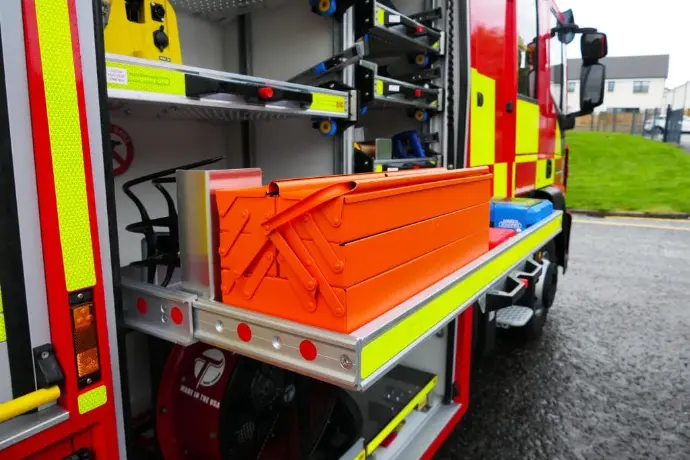

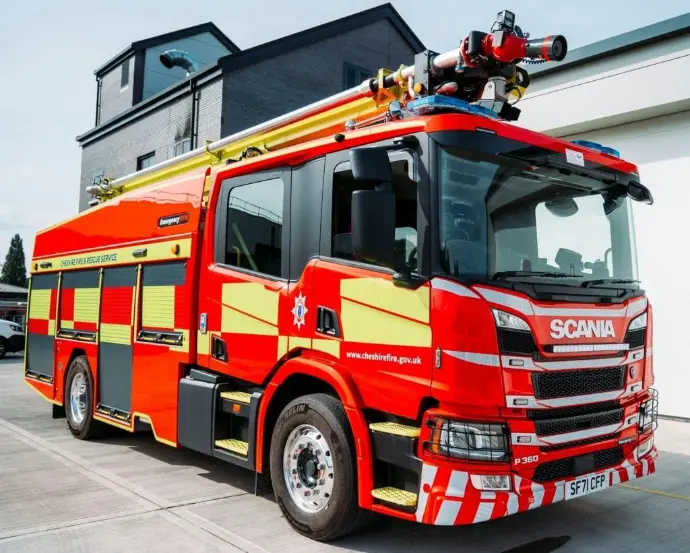

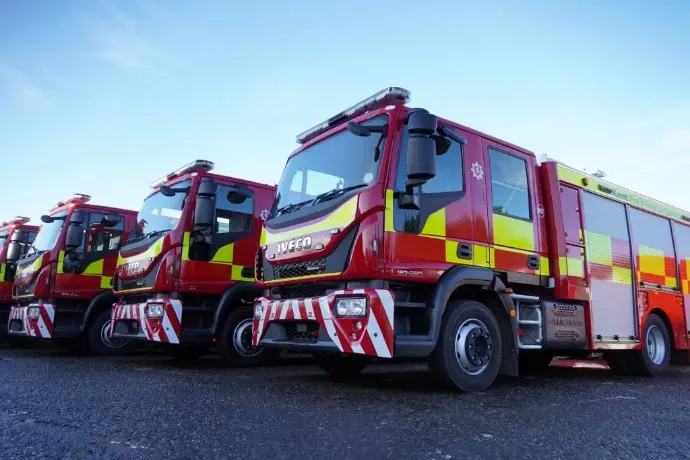

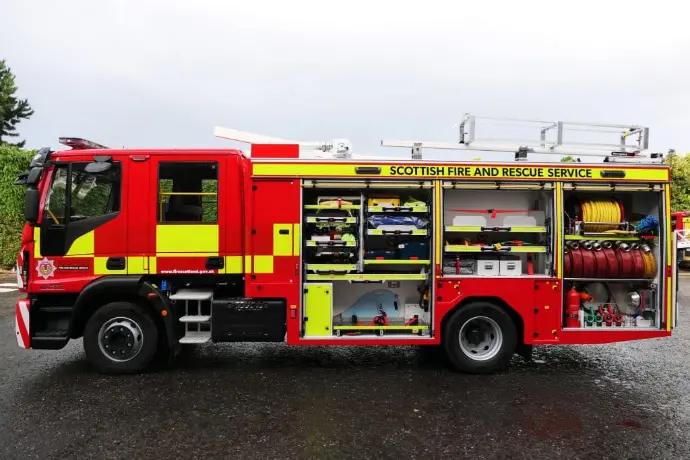

Fire Service Trucks

Emergency ONE (UK) offers right-hand drive & left-hand drive trucks for all countries in the CARICOM region. Different configurations are offered for tenders, tankers, hazmat and rescue trucks.

CATALOG/DATA SHEET

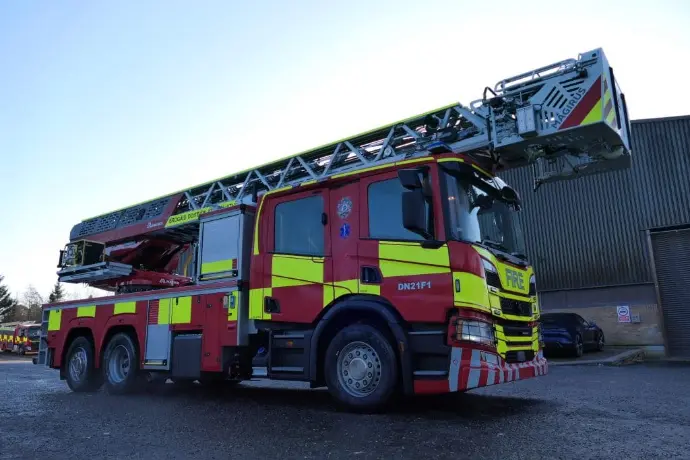

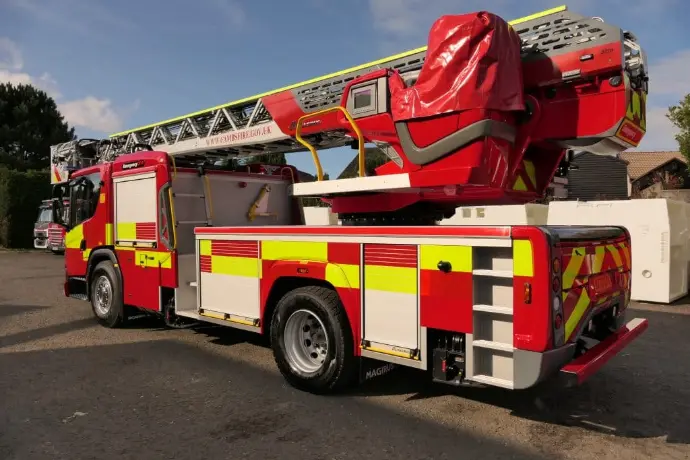

Emergency ONE (UK) offers both right-hand and left-hand drive trucks throughout the Caribbean. Different configurations are offered including “Turn Table Ladder”, “Aerial Ladder” and other specialized trucks.

CATALOG/DATA SHEET

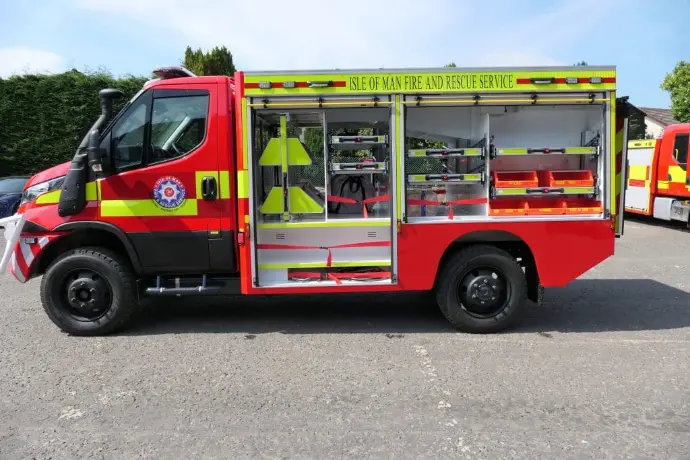

Emergency ONE (UK) offers rapid intervention quick attack vehicles for commercial complexes/warehousing, gated communities, and facilities that require protection whilst waiting on the fire services responders.

CATALOG/DATA SHEET

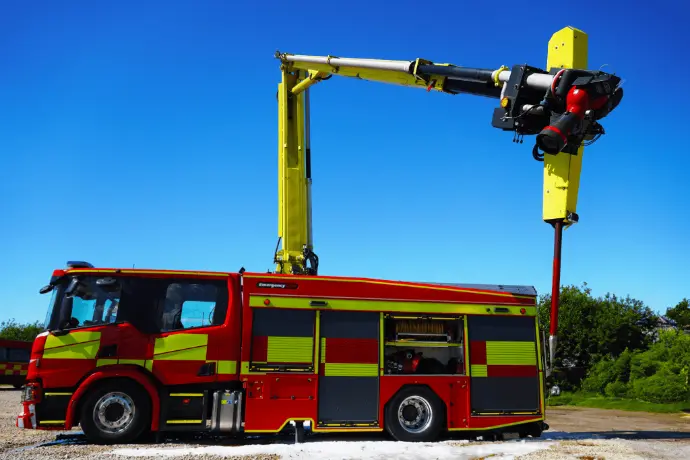

Industrial Fire Service Trucks

Emergency ONE (UK) offers right-hand and left-hand drive trucks for petrochemical, oil & gas facilities throughout the CARICOM region. Different configurations are offered for water & foam tenders, tankers, hazmat and rescue trucks.

HVAC CONTROL SYSTEM

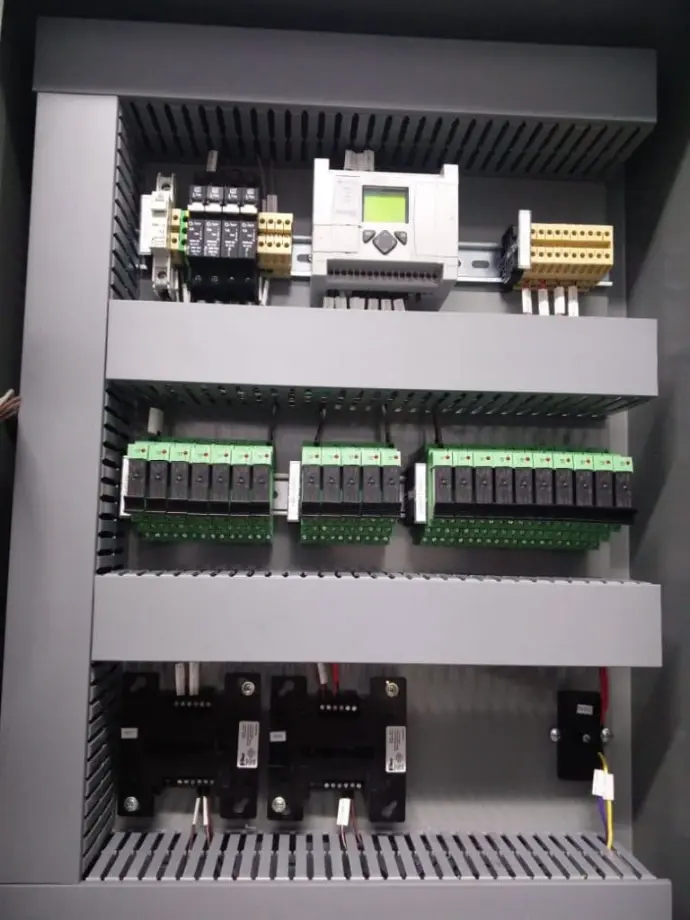

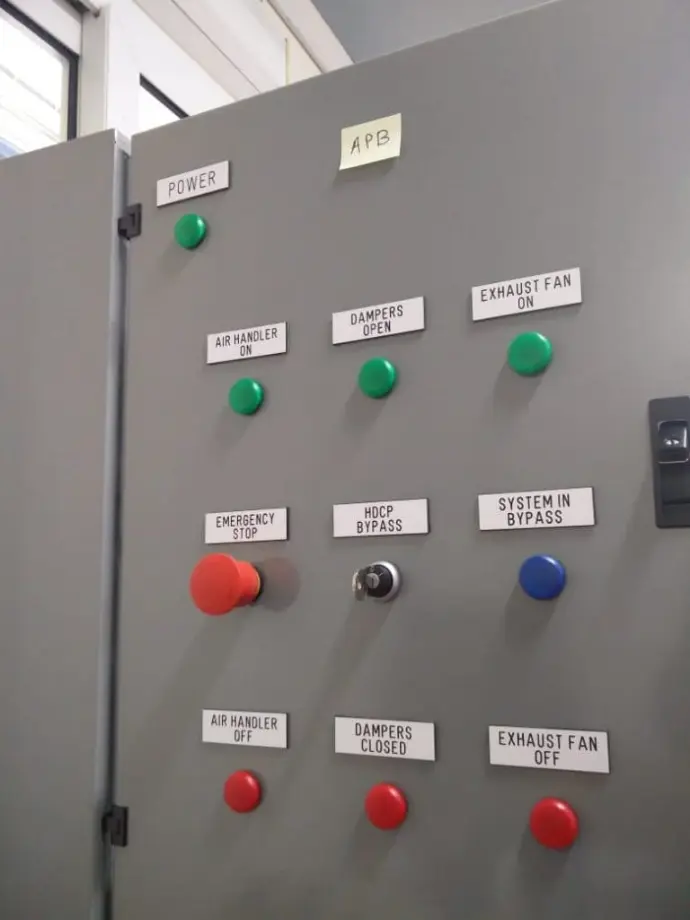

HVAC & Damper Control System

Description: NFPA 72 requires connection between fire alarm systems and HVAC systems for control to shutdown air handler units, smoke dampers, fire dampers and exhaust fans in the event of a fire condition. This is to prevent the migration of hot toxic smoke into other areas within a building. It also allows for air-tightness of rooms which are protected by Fire Suppression Systems meeting NFPA 2001 requirements.

In the absence of Building Management Systems (BMS) to execute these controls, IRP offers PLC based HVAC & Damper control systems for these applications to satisfy the NFPA requirements for Fire Detection and Suppression/Extinguishment.

Applications include small – large commercial buildings, substations and industrial control rooms, which are custom built to meet all client requirements. In addition to providing manual operation, our custom-built HVAC & Damper control panels are designed to prioritize decisions logically depending on the complexity of various air system components interconnected, including fail-safe operation.

CATALOG/DATA SHEET

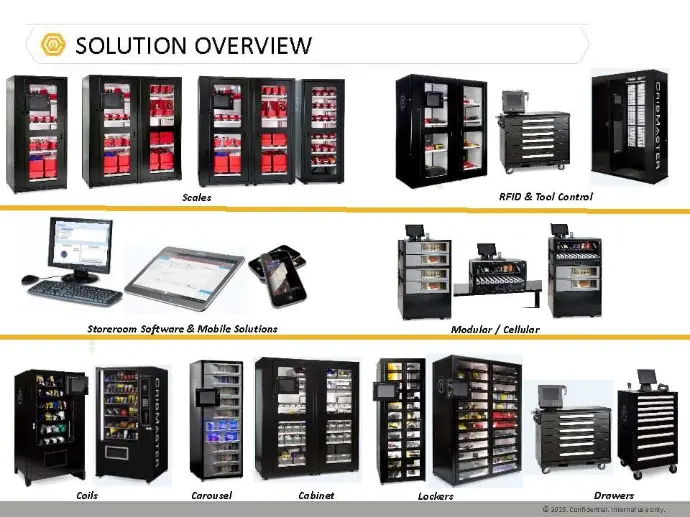

IRP Fire & Safety Ltd. have partnered with CribMaster to bring convenient Inventory Management Solutions to our customers

CribMaster, a Stanley Black & Decker Company, has developed an innovative Vending Solution line backed by advanced technology and user-friendly software

It addresses a diverse range of Inventory Management needs, from low value, high turn-over consumables to high-value, operations-critical materials

See options available below and contact us for details!
